原理框圖500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/55/700751183680499.gif');}" onmousewheel="return imgzoom(this);">

高頻機基本應用電路500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/55/700751183950352.gif');}" onmousewheel="return imgzoom(this);">

工頻機基本應用電路圖500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/55/700751183626901.gif');}" onmousewheel="return imgzoom(this);">

此板大小為130*65mm,末級4塊TLP250隔離輸出,正弦波頻率可調,三角波頻率可調,輸出電壓可調,用來驅動0-5kW正弦波逆變器.

兄弟,這個不錯,請問是用什么芯片控制的啊

可買否,????????????????????

都是很容易買的數字和模擬芯片.

調試中,還未量產.以后將把各關鍵點的波形貼出來.

50HZ方波波形:500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/55/700751183720790.jpg');}" onmousewheel="return imgzoom(this);">

50HZ基準正弦波的波形:500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/55/700751183720887.jpg');}" onmousewheel="return imgzoom(this);">

50HZ基準正弦波的失真度:500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/55/700751183720982.jpg');}" onmousewheel="return imgzoom(this);">

三角波(20KHZ)的波形:500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/55/700751183721080.jpg');}" onmousewheel="return imgzoom(this);">

比較器輸出波形(無正弦波輸入):500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/55/700751183721197.jpg');}" onmousewheel="return imgzoom(this);">

比較器輸出波形(有正弦波輸入):500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/55/700751183721316.jpg');}" onmousewheel="return imgzoom(this);">

加入死區后輸出波形(無正弦波輸入):500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/55/700751183721424.jpg');}" onmousewheel="return imgzoom(this);">

加入死區后輸出波形(有正弦波輸入):500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/55/700751183721605.jpg');}" onmousewheel="return imgzoom(this);">

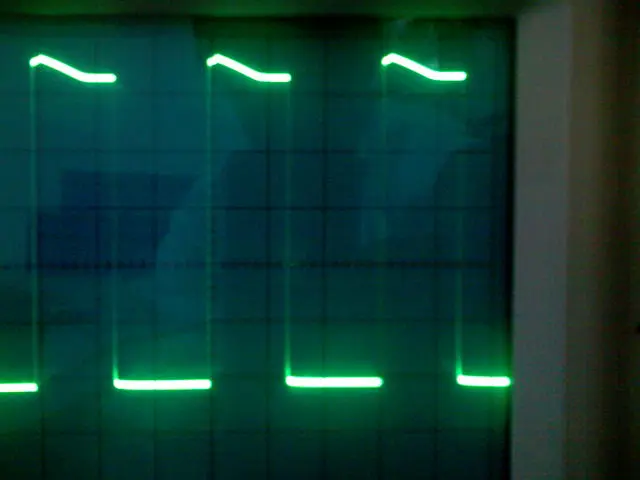

TLP250驅動輸出波形(無正弦波輸入):500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/55/700751183721778.jpg');}" onmousewheel="return imgzoom(this);">

TLP250驅動輸出波形(有正弦波輸入):500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/55/700751183721972.jpg');}" onmousewheel="return imgzoom(this);">

個人觀點:超過50元就沒有市場競爭力.

高頻機應用電路的220V輸出波形:500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/55/700751183766366.jpg');}" onmousewheel="return imgzoom(this);">

不錯啊,有沒價格?

好東西不錯來頂頂

不錯啊!有沒有商品化銷售!

是不錯.看來現在好多公司在搞純正弦波呀.

太簡單了,數字電路可以實現．有需要的和我聯系QQ:117365738

你好!有人投資并代理消售,首批200塊在外發生產中.

正弦波逆變有方波逆變無法比擬的性能.本人是業余制做,不代表公司.

有做過多大功率的機子?效率如何?

效率要大于0.9,最大功率是TLP250能驅動多大就多大,目前試機是1K.
