D大于等于0.3MM﹐ 那D是代表什麼﹖ 多謝
有關醫療安規問題.求幫助
上圖中IEC60601. 對應 DOUBLE那一欄中.
D大于等于0.3MM﹐ 那D是代表什麼﹖ 多謝
D大于等于0.3MM﹐ 那D是代表什麼﹖ 多謝
全部回復(22)
正序查看
倒序查看
Insulation between the primary and secondary in transformers with double insulation:
- 1 insulation layer having a thickness of at least 1 mm
- at least 2 insulation layers with a total thickness of at least 0.3 mm
- three layers provided that each combination of two layers can withstand the dielectric strength test for reinforced insulation
- 1 insulation layer having a thickness of at least 1 mm
- at least 2 insulation layers with a total thickness of at least 0.3 mm
- three layers provided that each combination of two layers can withstand the dielectric strength test for reinforced insulation
0
回復
@courtney
Insulationbetweentheprimaryandsecondaryintransformerswithdoubleinsulation:-1insulationlayerhavingathicknessofatleast1 mm-atleast2insulationlayerswithatotalthicknessofatleast 0.3mm-threelayersprovidedthateachcombinationoftwolayerscanwithstandthedielectricstrengthtestforreinforcedinsulation
多謝﹗
0
回復
@zongbohhu1423
三層也有要求,剝掉一層還需要能夠承受3000V的高壓,一般隔離的絕緣片厚度要大於0.4MM
在現在最新版本的IEC60601 標準里(現在都還沒使用) 是加有0.4 mm要求, 舊的版本里沒有0.4mm 要求, 他的這個培訓教材是臺灣萊茵的好早的版本.
e) In transformers with REINFORCED INSULATION or DOUBLE INSULATION the insulation
between the primary and secondary winding shall consist-of:
-- one insulation layer having a thickness of at least 1 mm, or
-- at least two insulation layers with a total thickness of not less than 0,3 mm, or
-- three layers provided that each combination of two layers can withstand the dielectric
strength test for REINFORCED INSULATION.
0.4 mm要求在很多其他標準里都有, 但在60601現在使用的版本里沒有, 而且任意兩層不是承受3000V 耐壓, 而是至少4000V, 你是看過其他標準有印象吧
至于級別我根本不在乎, 也不證明什么
e) In transformers with REINFORCED INSULATION or DOUBLE INSULATION the insulation
between the primary and secondary winding shall consist-of:
-- one insulation layer having a thickness of at least 1 mm, or
-- at least two insulation layers with a total thickness of not less than 0,3 mm, or
-- three layers provided that each combination of two layers can withstand the dielectric
strength test for REINFORCED INSULATION.
0.4 mm要求在很多其他標準里都有, 但在60601現在使用的版本里沒有, 而且任意兩層不是承受3000V 耐壓, 而是至少4000V, 你是看過其他標準有印象吧
至于級別我根本不在乎, 也不證明什么
0
回復
@青萍之末
在現在最新版本的IEC60601標準里(現在都還沒使用)是加有0.4mm要求,舊的版本里沒有0.4mm要求,他的這個培訓教材是臺灣萊茵的好早的版本.e)IntransformerswithREINFORCEDINSULATIONorDOUBLEINSULATIONtheinsulationbetweentheprimaryandsecondarywindingshallconsist-of:--oneinsulationlayerhavingathicknessofatleast1mm,or--atleasttwoinsulationlayerswithatotalthicknessofnotlessthan0,3mm,or--threelayersprovidedthateachcombinationoftwolayerscanwithstandthedielectricstrengthtestforREINFORCEDINSULATION.0.4mm要求在很多其他標準里都有,但在60601現在使用的版本里沒有,而且任意兩層不是承受3000V耐壓,而是至少4000V,你是看過其他標準有印象吧至于級別我根本不在乎,也不證明什么

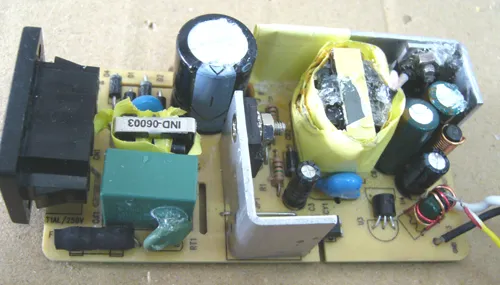

多謝!曬曬我的醫療品!請老師打分,呵...
0
回復
@青萍之末
在現在最新版本的IEC60601標準里(現在都還沒使用)是加有0.4mm要求,舊的版本里沒有0.4mm要求,他的這個培訓教材是臺灣萊茵的好早的版本.e)IntransformerswithREINFORCEDINSULATIONorDOUBLEINSULATIONtheinsulationbetweentheprimaryandsecondarywindingshallconsist-of:--oneinsulationlayerhavingathicknessofatleast1mm,or--atleasttwoinsulationlayerswithatotalthicknessofnotlessthan0,3mm,or--threelayersprovidedthateachcombinationoftwolayerscanwithstandthedielectricstrengthtestforREINFORCEDINSULATION.0.4mm要求在很多其他標準里都有,但在60601現在使用的版本里沒有,而且任意兩層不是承受3000V耐壓,而是至少4000V,你是看過其他標準有印象吧至于級別我根本不在乎,也不證明什么
圖.......
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/63/1783371204517188.jpg');}" onmousewheel="return imgzoom(this);">
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/63/1783371204517188.jpg');}" onmousewheel="return imgzoom(this);"> 0
